Enstall | ClickFit EVO | Universal panel clamp | Grey

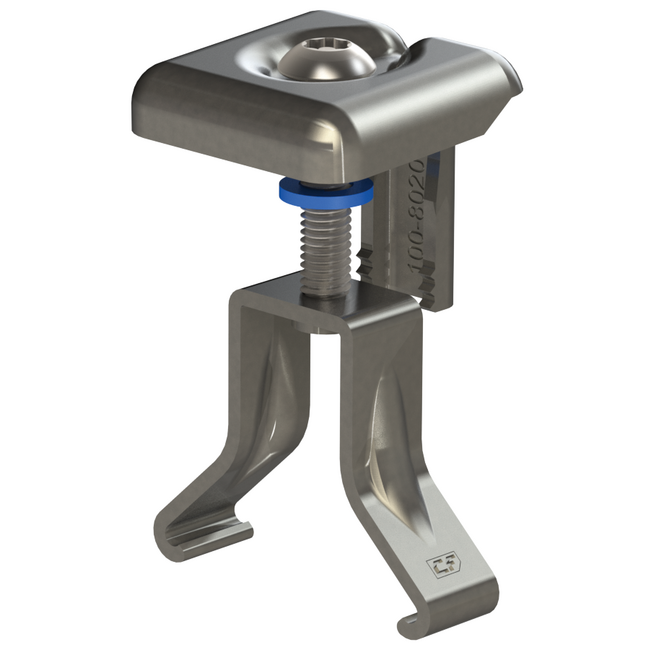

ClickFit EVO Universal panel clamp

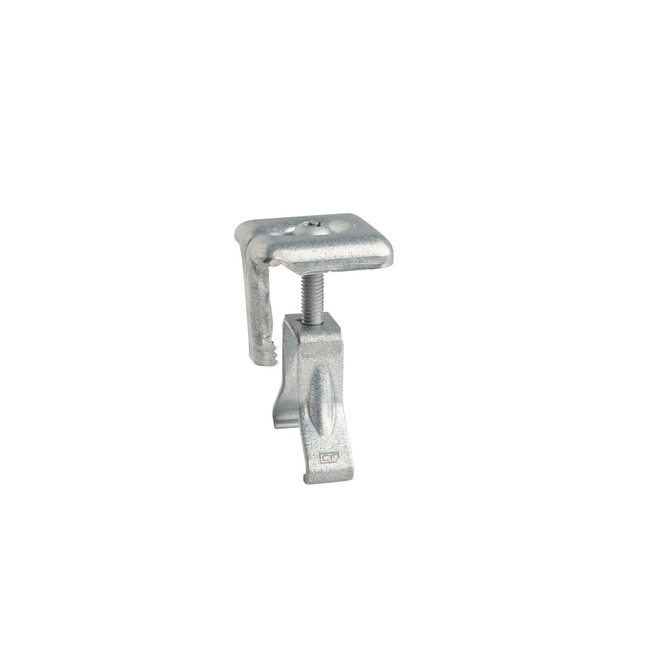

The ClickFit EVO universal panel clamp is manufactured of high-quality steel with a special Magnelis coating for optimal corrosion resistance. The ClickFit EVO panel clamp is suitable for all standard solar panels between 30 and 50mm thick. The smart design of the universal panel clamp means it can be used both as a centre clamp and an end clamp (in combination with the end cap). The universal EVO panel clamp pierces the top layer of the solar panel and so ensures that the solar panels are electrically interconnected (important for earthing the system). The clamps are fitted with anti-theft screws as standard and are also available in black.

Enstall’s grey universal panel clamp is suitable for pitched roofs and is clicked onto the top two mounting rails of the system. Slide the end clamp support onto the mounting rails and panel clamp and rotate the lip of the panel clamp away from the panel. Then slide the panel onto the top mounting rails, against the two end clamp supports, so that the panel clamp will fit over the solar panel. Ensure that the mounting rail end protrudes 20 to 30mm from the panel and then screw the clamps down. Then click the universal panel clamps onto the mounting rails. Only screw the clamps permanently to the mounting rail once the entire panel array is installed.

Enstall ClickFit EVO

ClickFit EVO is part of the Dutch company Enstall, which was founded in 2004. It is a universal mounting system with only four components. You can use Enstall’s calculation tool to design your own solar energy system within minutes and easily calculate and order the required materials.

Features of the ClickFit EVO system:

• Up to 40% faster installation

• Only four components

• Light and strong

• Only one tool needed

• Up to 25 years manufacturer’s warranty
